Advancing Nylon Bonding with Permabond TA 4550

Advancing Nylon Bonding with Permabond TA 4550



Nylon and polyamides are recognized for their high strength-to-weight ratios, thermal stability, and chemical resistance, making them essential in demanding industrial applications. However, these same properties also result in low surface energy and hydrophobicity, which challenge conventional adhesive formulations. Permabond TA 4550 is a structural acrylic adhesive engineered specifically for overcoming these obstacles and unlocks polyamides full potential.

Formulation and Chemical Properties

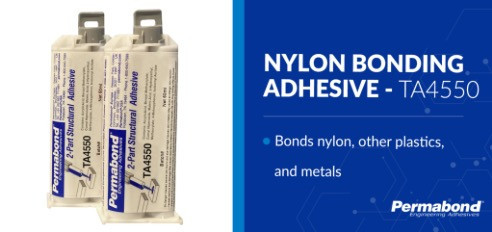

Permabond TA 4550 is a two-component, 2:1 ratio structural acrylic adhesive. This adhesive leverages a unique acrylic chemistry that promotes rapid polymerization at room temperature. Its formulation eliminates the need for surface pretreatments such as primers or plasma activation, thanks to a sophisticated molecular design that facilitates superior wetting and surface interaction with low-energy substrates like nylon.

Thixotropy and Controlled Flow Dynamics
The thixotropic nature of TA 4550 confers controlled flow characteristics, enabling precise deposition and preventing run-off even on vertical or inverted surfaces. The high viscosity (approximately 100,000 mPa·s at 25°C) ensures accurate substrate alignment and gap filling up to 5 mm. These properties are crucial in automated assembly lines, where precision and consistency are paramount.

Mechanical and Structural Performance
TA 4550 exhibits outstanding mechanical properties upon curing. Its shear strength exceeds 6 N/mm² (870 psi) on polyamide substrates such as PA6 and PA6,6, and it reaches even higher values on metals and fiber-reinforced composites. The adhesive's elongation at break of approximately 140% (per ASTM D638) underpins its ability to endure dynamic loads, making it well-suited for applications where differential thermal expansion between bonded materials could pose a challenge.

Impact strength is a critical factor in structural bonding applications, and TA 4550 delivers exceptional toughness. It exhibits an impact strength of 24 kJ/cm² (per ASTM D-950), providing reliability in environments subjected to vibrations or sudden impacts. Additionally, the adhesive's high peel strength (250-270 N/25mm on aluminum substrates) ensures robust performance under peeling forces, which is often a weak point for traditional adhesives​

Curing Kinetics and Environmental Resistance
Permabond TA 4550 cures rapidly, achieving fixture strength within 5-6 minutes at room temperature, with full cure developing over 24 hours. This curing profile optimizes production efficiency and is especially beneficial for high-throughput operations. The adhesive also features excellent environmental resistance, maintaining structural integrity under exposure to moisture, temperature fluctuations, and chemical agents, which is vital for applications in automotive, aerospace, and consumer electronics.

Applications and Practical Considerations
The absence of surface pretreatments, combined with TA 4550's non-slumping characteristics, enhances its applicability in high-speed manufacturing environments. Engineers can confidently employ this adhesive for bonding nylon to metals or composite materials, which is essential for designing components subjected to multi-material interfaces and complex stress profiles.

Permabond TA 4550 is a robust adhesive solution optimized for industrial bonding of nylon and other challenging substrates. Its advanced formulation and superior mechanical properties mark a significant innovation for engineers striving for efficiency and reliability in structural assembly​

We are your technical partner
If you need technical support or want to find out more about the possibilities for your industrial application, please contact us and one of our experts will come back to you.
